Description

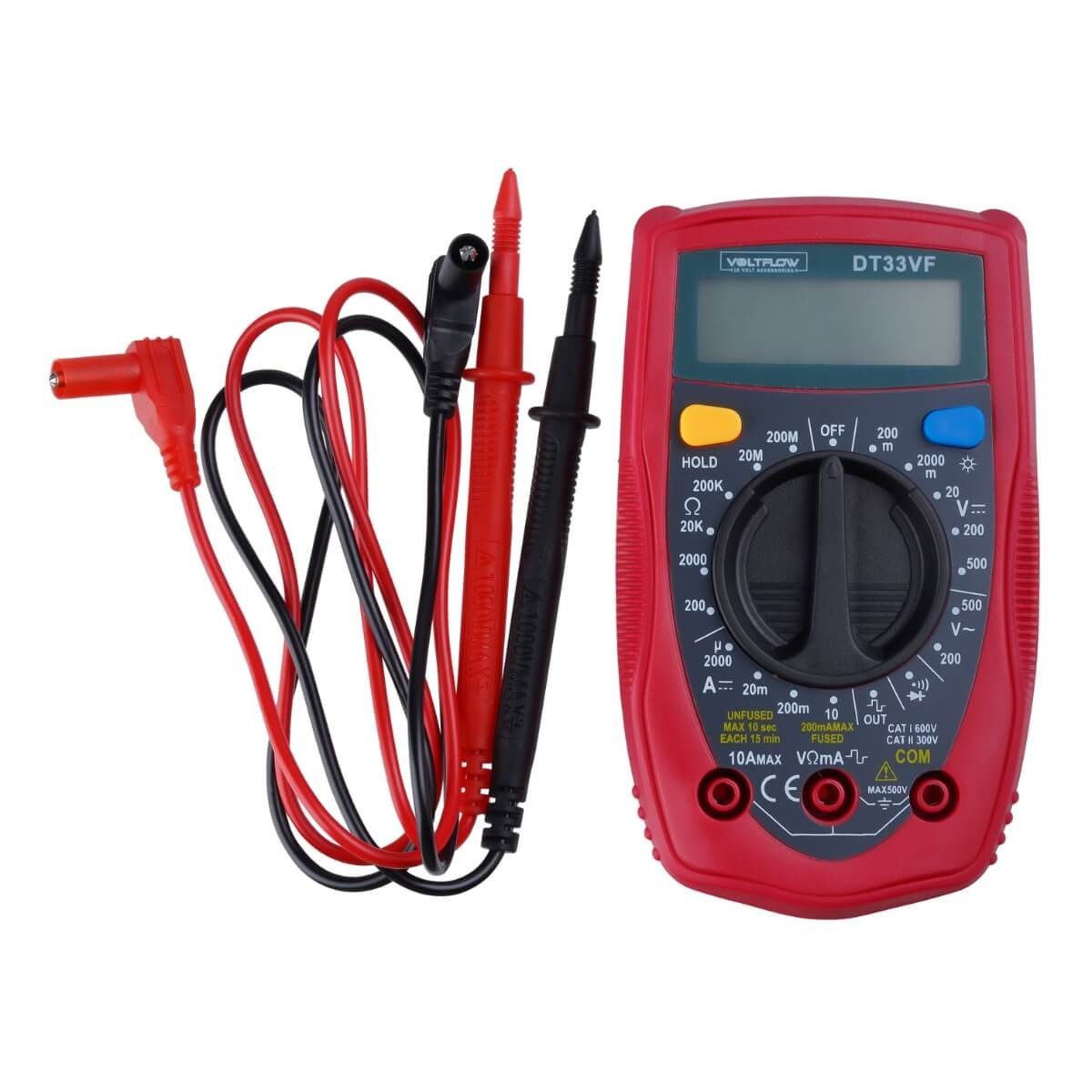

Efficiently diagnose and solve electrical problems for both automotive and household environments with this premium quality, easy to use VoltFlow Digital Multimeter.
Simple to use, providing a variety of measuring capabilities.
Features:
- Measurements for AC/DC Voltage
- Gauging DC Current
- Resistance Determination
- Continuity Check
- Transistor & Diode Testing
- Battery Evaluation for 1.5V & 9V
- LCD Display: Large 3 1/2 digit, 12.5mm for easy visibility
- Data Hold Button: Lock in your reading with a simple press
- Back Light Feature: Easily press to turn on the display's illumination in dimly lit areas; press again to turn it off
- Function and Range Switch: Combines power and measurement type choices into a single control
- Overload Shield: To prevent damage to the multimeter and its user while in use
- Straightforward Connections: Jacks are readily identifiable for setup
- Instant Buzzer Feedback: Hear continuity outcomes without having to look
- Selective Intuitively: Effortlessly toggle between function and range
Quick Setup Reference:
| Operation | Black Lead (COM) | Red Lead (VΩmA) | Red Lead (10Amax) |
|---|---|---|---|
| Voltage, Resistance, Diode, etc. | Connect | Connect | Avoid |
| Current (>200mA) | Connect | Avoid | Connect |
Caution: Use the 10Amax jack only for current measurements to prevent damage.
